INPUT | |
Input Voltage Range (Load < 50%) | 118 ~ 295 V (± 5 V) |
Input Voltage range ((Load > 50%)) | 160 ~ 295 V (± 5 V) |
Frequency | 40 ~ 70 Hz |
Phase | Single Phase with Ground |
Power Factor | ≥ 0.99 @ full load |

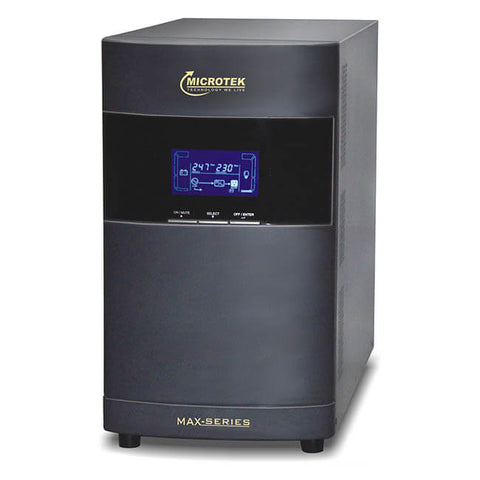

Model: - NM36MX1KK11(MAX+ Series)
Rated Capacity: - 1 KVA / 900 Watts
Number of Batteries:- 3
Output Power Factor:- 0.9
Inbuilt Charger:- 6AMPS
External Charger Option:- 8AMPS
Transformer:- Option
Special Feature:- (Smart LCD Display. Hot Stand By)
Warranty:- 2 Year
Do You Searching For Microtek max series online ups 1kva we will say Microtek Max+ Series 1kva/36V is a Great Choice for you. unlike another Brand. As you should know Microtek is known for producing high-end lay inverter, Online Ups, Battery & Solar products that are durable and extremely practical. Glazeimpex is a well-known e-commerce platform for a qualitative range of Solar system, Online UPS, Home UPS, Inverter, Panel. The entire Microtek Max+ Series 1kva/36V manufactured using quality-assured material and advanced techniques, making them rise to the standard in this challenging field.
Microtek High-Frequency Online UPS provides uninterrupted pure power for critical applications such as computer networks, servers, internet cafes, ATMs, laboratories, etc.
The 1kVA UPS from N1 Critical Technologies offers 11 minutes of run time at 100% load (900 watts). If your load was 900 watts and you were using a 2 kVA UPS from N1 Critical, you would be running at 50% load and would have 24 minutes of run time.
Microtek's High-Frequency Online UPS provides uninterrupted pure power for critical applications such as computer networks, servers, internet cafes, ATMs, laboratories, etc. India
BATTERY | |
DC Voltage | 36 V |
Charge Current | 9.5 Amps |
INPUT | |
Input Voltage Range (Load < 50%) | 118 ~ 295 V (± 5 V) |
Input Voltage range ((Load > 50%)) | 160 ~ 295 V (± 5 V) |
Frequency | 40 ~ 70 Hz |
Phase | Single Phase with Ground |
Power Factor | ≥ 0.99 @ full load |
Communication Interface | RS232,SNMP (Optional) |
Indication | LCD Display |
Noise Level | Less than 50dBA @ 1 Meter (With Fan Speed Control) |
UPS Overload / UPS Short-Circuit | 110% / 300% |
OUTPUT | |
Voltage Range | 208 / 220 / 230 / 240 V AC |
Frequency Range (Synchronized Range) | 47 ~ 53 Hz or 57 ~ 63 Hz |
Frequency Range (Battery Mode) | 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz |
THD (Linear Load) | ≤ 2% |
THD (Non Linear Load) | ≤ 4% |
Overload | > 110%, 30s turn to Bypass Mode
> 150% instant turn to Bypass |
Crest Factor | 3:1 (Max) |
Short Circuit Protection | 5 cycles turn Off Inverter, no transfer to Bypass, provide Alarm (AC Mode), 5 cycles turn Off Inverter, provide Alarm(Battery Mode), Input Fuse blown or Breaker action |
Waveform | Pure Sinewave |
Transfer time
(AC Mode to Battery Mode) (Inverter to Bypass Mode) |
Zero
< 4 ms |
Efficiency | 85%~ 92% |
