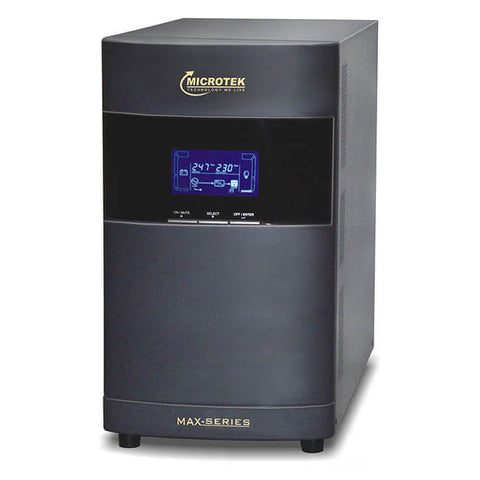

Microtek 3KVA Online UPS With Inbuilt Battery(7ah x 6 Batt.)

Microtek 3KVA Online UPS With Inbuilt Battery(7ah x 6 Batt.)

Regular price Rs. 35,237.15
Sale price Rs. 35,237.15 Regular price Rs. 36,990.00
  • Estimated Delivery:Monday, 09 December - Friday, 13 December

  • Shipping & Returns: Free Delivery , 30 days Returnable

Product description

Key Feature Of Microtek 3KVA Online UPS With Inbuilt Battery(7ah x 6 Batt.)

Model: - 3KVA/72V (Max- Series - In-Built)
Rated Capacity: -  3KVA / 2700 Watts
Number of Batteries:- 6,
Output Power Factor:- 0.9
Inbuilt Charger:- 1.5 AMPS
External Charger Option:-  4AMPS X 2 = 8Amps
Transformer:- Option
Special Feature:- (Smart LCD Display. Hot Stand By)
Warranty:- 12 Months  warranty

Description

Do You Searching For 3kva online ups with Battery we will say Microtek 3KVA Online UPS With Inbuilt Battery(7ah x 6 Batt.)  is a Great Choice for you. unlike another Brand. As you should know Microtek is known for producing high-end lay inverter, Online Ups, Battery & Solar products that are durable and extremely practical. Glazeimpex is a well-known e-commerce platform for a qualitative range of Solar system, Online UPS, Home UPS, Inverter, Panel. The entire Microtek 3KVA Online UPS With Inbuilt Battery(7ah x 6 Batt.)  manufactured using quality-assured material and advanced techniques, making them rise to the standard in this challenging field.

Microtek provides uninterrupted pure power for critical applications such as high-frequency online UPS computer networks, servers, Internet cafes, ATMs, laboratories, etc.
These products are manufactured in state-of-the-art automated manufacturing plants equipped with high-tech machines in India.
Some important machines are SMT, ICT and automatic assembly lines, etc.
Microtech has received numerous awards and accolades for its commitment to the industry.

Here's Why Will You Like This?

  • High Frequency and Double Conversion Online Technology.
  • High-End IGBT Based.
  • High-End Micro Controller Based.
  • Wide Input Voltage Range
  • Advanced PFC Technology
  • Advanced Battery Management
  • Automatic Battery Charging in UPS Off Mode
  • Short Circuit and Overload Protection
  • Smart RS232 communication with monitoring software
  • SNMP Card Slot (Optional)
  • Over Temperature Protection.
  • EMI / RFI Noise Filter
  • LCD/LED Display simultaneously
  • Specially designed to suit Indian Power and Environment Conditions
  • Generator Compatible (Supplying Sinewave Voltage)
  • Isolation Transformer (Optional)
  • Different Output Voltage settings.
  • Output Frequency fixed at 50Hz or can be synchronized with Input Frequency.
  • Static Bypass Enable or Disable.
  • Outlets Programmable and Non-Programmable.
  • Protection from DC Fan failure.
  • In-built Over Voltage Cut-Off Device.



Product Specification

INPUT
Input Voltage Range (Load < 50%) 118 ~ 295 V (± 5 V)
Input Voltage range ((Load > 50%)) 160 ~ 295 V (± 5 V)
Frequency 40 ~ 70 Hz
Phase Single Phase with Ground
Power Factor ≥ 0.99 @ full load


BATTERY
DC Voltage 72 V(6* 7.0 AH Battery inside)
Charge Current 1.5 Amps



Communication Interface RS232,SNMP (Optional)
Indication LCD Display
Noise Level Less than 50dBA @ 1 Meter (With Fan Speed Control)
UPS Overload / UPS Short-Circuit 110% / 300%
Warranty One Year



OUTPUT
Voltage Range 208 / 220 / 230 / 240 V AC
Frequency Range (Synchronized Range) 47 ~ 53 Hz or 57 ~ 63 Hz
Frequency Range (Battery Mode) 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
THD (Linear Load) ≤ 2%
THD (Non Linear Load) ≤ 4%
Overload > 110%, 30s turn to Bypass Mode
  > 150% instant turn to Bypass
Crest Factor 3:1 (Max)
Short Circuit Protection 5 cycles turn Off Inverter, no transfer to Bypass, provide Alarm (AC Mode), 5 cycles turn Off Inverter, provide Alarm(Battery Mode), Input Fuse blown or Breaker action
Waveform Pure Sinewave
Transfer time
(AC Mode to Battery Mode)
(Inverter to Bypass Mode)
Zero
< 4 ms
Efficiency 85%~ 92%



WEIGHT:  28.900 kg

DIMENSIONS (L W H):  560x320x460
