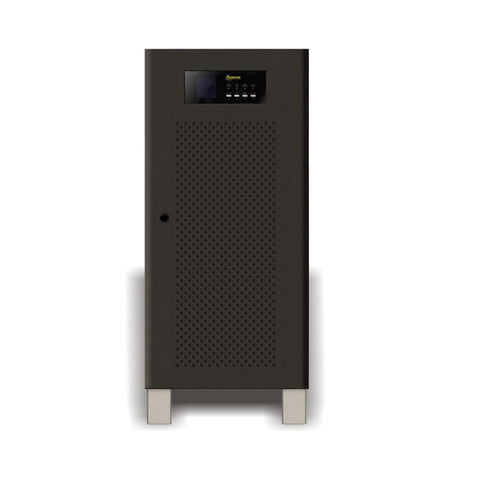

Microtek 15 KVA/360V i- Maxx 3 phase - 1 Out Online UPS

Regular price Rs. 181,481.50
Sale price Rs. 181,481.50 Regular price Rs. 190,500.00
  • Estimated Delivery:Sunday, 19 May - Thursday, 23 May

  • Shipping & Returns: Free Delivery , 30 days Returnable

Product description

Key Feature Microtek 15 KVA/360V  i- Maxx 3 phase - 1 Out  Online UPS

Model: - i-MAXX DSP TECHNOLOGY BASED ONLINE UPS SERIES
Rated Capacity: - 15KVA /12KW
Phase: Three Phase In / Single Phase-Out
DC VOLTAGE SYSTEM: DEFAULT: 360VDC, ADJUSTABLE: 348-384VDC
Number of Batteries:- 16, 18
Output Power Factor:- 0.8
Inbuilt Charger:- 20 AMPS
External Charger Option:- 4AMPS
Transformer:- Inbuild
Special Feature:- (Parallel Redundancy and Hot Stand -By)
Warranty:- 12 Months warranty

Description

Do You Searching For 15 kva 3 phase ups we will say Microtek 15 KVA/360V i- Maxx  3 phase - 1 Out  Online UPS  is a Great Choice for you. unlike another Brand. As you should know Microtek is known for producing high-end lay inverter, Online Ups, Battery & Solar products that are durable and extremely practical. Glazeimpex is a well-known e-commerce platform for a qualitative range of Solar system, Online UPS, Home UPS, Inverter, Panel. The entire Microtek 15 KVA/360V i- Maxx  3 phase - 1 Out  Online UPS manufactured using quality-assured material and advanced techniques, making them rise to the standard in this challenging field.

Microtek provides uninterrupted pure power for critical applications such as low-frequency online UPS computer networks, servers, cyber cafes, ATM machines, labs, and more.
These products are manufactured in state-of-the-art automated manufacturing plants equipped with Hitech machines.
Some important machines are SMT, ICT and Automatic Assembly Lines, etc.
Microtek has received numerous awards and recognition for its commitment to the industry.

Here's Why Will You Like This?

  • Online Double-Conversion.
  • DSP Technology guarantees High Reliability.
  • True Galvanic Isolation Transformer design.
  • Control designed to withstand all kinds of loads.
  • Independent Ventilation enhances durable operation under harsh environments.
  • Adjustable Battery numbers (29, 30, 31 & 32 Nos.)
  • Accept Dual-Mains Input.
  • Parallel Operation with up to 4 units (optional).
  • Reverse Phase sequence & no neutral operation.

All Microtek Product Ranges are specially designed for the User’s Benefit.

Product Specification

INPUT
Nominal Voltage 3 x 380VAC/400VAC/415VAC (3Ph+N+G)
Acceptable Voltage Range 165VAC ~ 280VAC (Ph-N) / 285VAC ~ 485VAC (Ph-Ph)
Frequency Range 50Hz/60Hz ± 10 %



EFFICIENCY
Overall Efficiency (AC Mode) ≥ 88%
Efficiency (Battery Mode) 90%



BATTERY & CHARGER
Battery Type/Battery Numbers Lead Acid/Tubular/SMF, Default: 30 Nos. (Adjustable 29,30,31 & 32)
Charging Current Default 5A,Maximum=Capacity(KW)x(1-%Load)/Battery Voltage



STATIC BYPASS
Overload/Short-Circuit Capability 150% for 1 hour ; 180% for 30 sec ; >200% for 200 ms
Connection Type/Input Voltage Range Hardwire 3-wire (1Ph+N+G) / 220VAC



PHYSICAL
Dimension LxWxH(mm)/Net Weight(Kgs.) 656x405x817/120Kgs.



ENVIRONMENT
Operating Temp./Humidity/Noise Level Temp.:0 ~ 55 ͦC / Humidity: 0 ~ 90% (non-condensing) / Less than 60dBA @ 1 Meter
OUTPUT
Nominal Voltage Default = 230Vac +/- 1%, 208VAC/220VAC/ 230VAC (Adjustable)
Waveform Pure Sinewave
Frequency Range (Synchonized mains Mode) 50Hz +/- 1%
Frequency Range (Battery Mode) 50Hz +/- 0.1Hz
Power Factor / Crest Factor 0.8 / 3:1
Total Harmonic Distortion ≤ 2% (Linear Load) / ≤ 5% (Non-Linear Load)
Transfer Time (AC to DC) 0 ms
Transfer Time (Inverter to Bypass) 0 ms
Overload Capability 110% for 10 minute, 150% for 60 Sec & > 160% for 200ms



MANAGEMENT
USB and Modbus RS-232/RS485 Supports Windows 2000/2003/XP/Vista/2008/7/8/10,Linux and MAC
Dry Contacts / SNMP (Optional) 6 outputs and 2 inputs / Power management from SNMP manager and web browser (Optional)
