Luminous Solar Off-grid Combo - Inverter PCU 7.5KVA With Battery 150L And Panel 325W

Key Features Of Luminous Solar Off-grid Combo - Inverter PCU 7.5KVA With Battery 150L And Panel 325W

Inverter PCU NXT+ 7.5KVA/96V

Output Waveform:- Sine Wave
Range Name (Solar):- PCU ( Power Control Unit )
Rated AC power:-  230V, 26A, Single phase
Max Supported Panel Power:- 6000 Wp, Input Voltage Range (Vmp) - 120-210V
Charge Controller:-   MPPT, Input Voltage 160-240 Voc
Nominal Battery Bank Voltage:- 96V
Warranty:- 24 months (2Year)

Battery 150L LPT12150L

Battery Types: Tubular Plate Technology, 150Ah
Recommended Capacity Controller : 150Ah Rated Capacity @ C10, 12V, 330Wp Solar Panel Compatible.
Charging: Next generation tall tubular battery with better charge acceptance and long Back up
Very Low Maintenance: Topping up frequency: Once in 8 to 10 months
High-Temperature Performance: Can handle extreme weather conditions
Warranty: Warrant -36 Months

325W Solar Panel

Panel Type:- Polycrystalline Cells type Panel
Capacity:- 325W, 24V, 72 Cells RFID
Voltage:- Voltage at Max Power (Vmax) - 37.39V, Open Circuit Voltage (Voc) - 46.38V
Current:- Current at Max Power (Imax) - 8.20A, Short Circuit Current (ISC) - 8.96A
Warranty:- 25 years performance warranty.

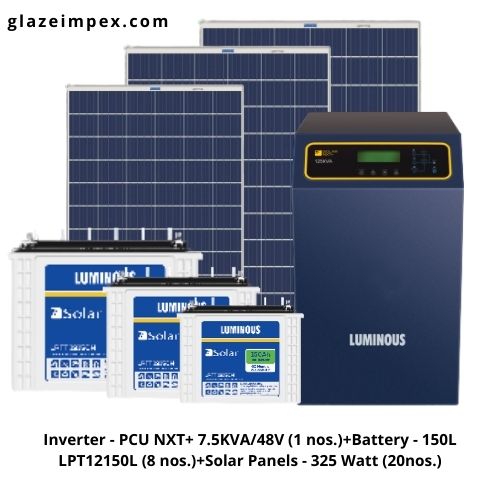

Components & Cost -
Inverter - PCU NXT+ 7.5KVA/48V (1 nos.) ₹ 67,620.00
Battery - 150L LPT12150L (8 nos.) ₹ 117,312.00
Solar Panels - 325 Watt (20 nos.) ₹ 218,400.00

Description

Do You Searching for the 7kw solar system this is a powerful Luminous Solar Off-grid Combo - Inverter PCU 7.5KVA With Battery 150L And Panel 325W This is the best combo to have in a 2-3 bhk beautiful homes, Industry having 4-5 hours of a power outage. Glazeimpex is a well-known e-commerce platform for a qualitative range of Solar system, Online UPS, Home UPS, Inverter, Panel. The entire luminous Solar Off-grid Combo - Inverter PCU 7.5KVA With Battery 150L And Panel 325W in India for off-grid is manufactured using quality-assured material and advanced techniques, making them rise to the standard in this challenging field.

The 7.5kVA off-grid luminous solar system is COMBO solar complete with 20 nos. ... 7.5kW The solar luminous system can operate 15 LED lights + 5 fans + 2 solar AC (or) 10 LED lights + 5 fans + 1 cooler + 1 refrigerator + 1 AC (or) 5000 watts any type of load. This 7.5 kilowatt solar system can operate with a maximum load of 5500 watts

The NXT + range of PCUs is the ideal solution for off-grid applications. Designed for control, the PCU intelligently optimizes battery charging and power to charge between solar, battery, and grid power.

The Luminous Solar Power Conditioning Unit (PCU) is a powerful hybrid solar inverter with an advanced solar charge controller based on mppt technology, digital display, and short circuits in a purely safe way.

The PCU is the heart of the solar photovoltaic system. The function of the PCU is to convert direct current (DC) generated by photovoltaic fields into alternating current (AC)

On average, a 2kW solar system generates 9 units per day - half the electricity usage of a modest Australian household. But the amount of your 2kW solar system depends on how much sun your location receives, as well as system positioning.

 The entire Luminous LPT 12150L 150L solar battery is manufactured using quality-assured material and advanced techniques, making them rise to the standard in this challenging field.

The 325w luminous solar panels are 72-cell monocrystalline modules. ... The module system voltage is kept at 1500 VDC to scale back the value of BOS and is combined with current to enhance the performance of the Solar Rooftop. These panels are ideal for commercial and residential use with an efficiency of 16.74%.

Here's Why Will You Like This?

Inverter PCU NXT+ 7.5KVA/96V

• Pure Sine Wave
• Mains available: Yes
• Battery Charging through Mains: Yes
• Battery Charging through Solar Panel: Yes
• Voltage regulation display: Yes
• Power savings: Yes
• Load output through Battery: Yes
• Low Battery Indication: Yes
• Overload Indication: Yes

Battery 150L LPT12150L

• Tubular Plate Technology
•  Spines manufactured using HADI high-pressure casting machine for long life
• Tubular plate construction for extremely long life and superior performance
• Extra-strong, flexible oxidation-resistant gauntlet for extremely long life
• Extremely high purity, corrosion-resistant spine alloy composition ensures the longer battery service life
• Highly puncture-resistant polyethylene separator for higher reliability
•  Plates designed for improved charge acceptance
• Warrant -36 Months

325W Solar Panel

• Polycrystalline Cells type Panel
• Advanced EVA encapsulation to give better protection to modules
• Best in Class conversion efficiency
• Anti-reflective coating for more light absorption
• Optically, mechanically and electrically tested
• High strength Aluminium frame design to offer high torsion resistance
• Compliance with IEC standards"
• 25 years performance warranty.

Product Specification

Inverter PCU NXT+ 7.5KVA/96V

Model: NXT+ 7.5 kVA
Range Name (Solar): PCU
VA Rating: 7.5 kVA
Output Waveform: Sine Wave
Warranty: 24 months
Net weight (kg.): 76.3 kg
No. of 12V Batteries in Series: 8
Dimensions (L*B*H): 35.0*63.5*58.9 CM
Technology (Solar): With Battery
Maximum Power Voltage Vmp (V): 120V-210V
Max. supported panel power (Wp): 6000 Wp
Nominal battery bank voltage: 96 V
Input Voltage Range (Voc): 160V-240V

Battery 150L LPT12150L

Voltage: 12 Volt
Warranty: 3 years
Inverter Support: 900 VA 10 KVA Nominal
Model: LPTT 12150L
Rated Capacity: 150 Ah
Technology: Tall Tubular
Weight:   61Kg

325W Solar Panel

Brand: Luminous solar panel
Model: Poly 325W/24V Domestic Cell
Wattage: 325W
Solar Cell Type: Polycrystalline
Voltage: 24V
Warranty: 25Years
Length: 1640 mm
Width: 990 mm
Weight: 8 kg
