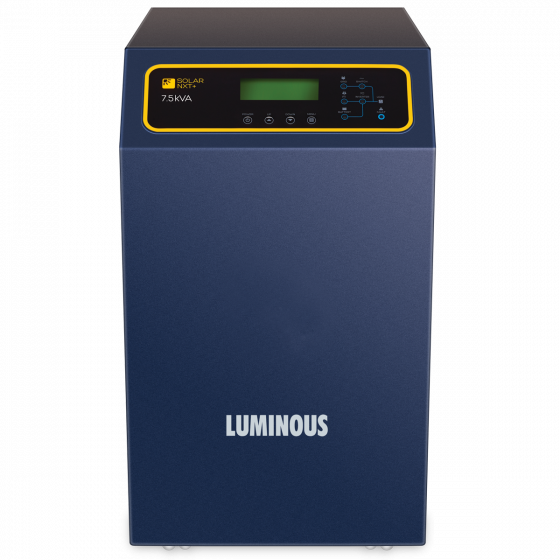

luminous PCU NXT+ 7.5 KVA Solar inverter/120V

Rs. 149,900.00
Key Features Of luminous PCU NXT+ 7.5 KVA Solar inverter/120V Output Waveform:- Sine WaveRange Name (Solar):- PCU ( Power Control Unit )Rated AC power:-  230V, 26A, Single phaseMax Supported Panel Power:- 6000 Wp, Input Voltage Range (Vmp) - 120-210VCharge Controller:-   MPPT, Input Voltage 160-240 VocNominal Battery Bank Voltage:- 96VWarranty:- 24 months (2Year) Description Do You Want...
-
+
Rs. 67,620.00

Luminous

Key Features Of luminous PCU NXT+ 7.5 KVA Solar inverter/120V

Output Waveform:- Sine Wave
Range Name (Solar):- PCU ( Power Control Unit )
Rated AC power:-  230V, 26A, Single phase
Max Supported Panel Power:- 6000 Wp, Input Voltage Range (Vmp) - 120-210V
Charge Controller:-   MPPT, Input Voltage 160-240 Voc
Nominal Battery Bank Voltage:- 96V
Warranty:- 24 months (2Year)

Description

Do You Want Searching for a 7.5kw solar inverter then the luminous PCU NXT+ 7.5 KVA Solar inverter/120V will be a great choice for you. Unlike other brands, Luminous is known for making high-end inverters, batteries, Solar system, Online UPS,  and Home UPS  that are durable and extremely practical.  The luminous PCU NXT+ 7.5 KVA Solar inverter/120V  is a premium quality pcu from Luminous. Glazeimpex is a well-known e-commerce platform for a qualitative range of Solar system, Online UPS, Home UPS, Inverter. The entire luminous PCU NXT+ 7.5 KVA Solar inverter/120V is manufactured using quality-assured material and advanced techniques, making them rise to the standard in this challenging field.

The NXT + PCU range is the ideal solution for off-grid applications. Designed for control, the PCU intelligently optimizes battery charging and power charging between solar, batteries, and the grid.

The PCU is a solar power conditioning unit (PCU) that also uses solar energy (primary) and power from the grid (secondary) to charge the battery. Since power usage from the grid is secondary, grid power is used only when solar power is not present and the battery voltage level is reduced to a certain level.

MPPT Charge Controller - Our solar PCU has the latest MPPT latest (maximum power point tracking) charge, controller. This enables you to make the most out of solar energy. It is 30% more efficient than a normal PWM based PCU.

Priority Setting - Being a bi-directional PCU, it allows customers the flexibility to set priority settings based on their requirements for maximum power savings, power backup only during power outages, and backup power via battery in areas where the network provider is not available.

Super Informative User-friendly LCD - A user-friendly LCD that displays important information like battery time of charge & discharge, Grid Off / available, Priority setting, etc.

Safe for your home - Luminous Solar PCU is armed with comprehensive protection features like short, reverse polarity, battery overcharge, and battery deep discharge. Its pure wave output ensures the security and quiet operation of connected appliances.

Here's Why Will You Like This?

  • Pure Sine Wave
  • Mains available: Yes
  • Battery Charging through Mains: Yes
  • Battery Charging through Solar Panel: Yes
  • Voltage regulation display: Yes
  • Power savings: Yes
  • Load output through Battery: Yes
  • Low Battery Indication: Yes
  • Overload Indication: Yes



Product Specification

Model NXT+ 7.5 kVA
Range Name (Solar) PCU
VA Rating 7.5 kVA
Output Waveform Sine Wave
Warranty 24 months
Net weight (kg.) 76.3 kg
No. of 12V Batteries in Series 8
Dimensions (L*B*H) 35.0*63.5*58.9 CM
Technology (Solar) With Battery
Maximum Power Voltage Vmp (V) 120V-210V
Max. supported panel power (Wp) 6000 Wp
Nominal battery bank voltage 96 V
Input Voltage Range (Voc) 160V-240V
