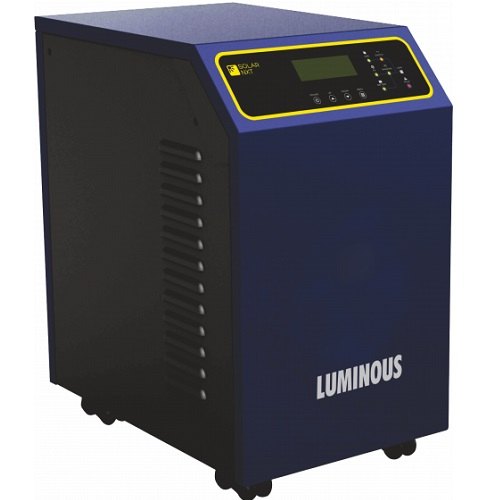

Luminous PCU NXT+ 9.5KVA/120V

Regular price Rs. 110,208.00
Sale price Rs. 110,208.00 Regular price Rs. 174,900.00
  • Estimated Delivery:Monday, 15 July - Friday, 19 July

  • Shipping & Returns: Free Delivery , 30 days Returnable

Product description

Key Features Of Luminous PCU NXT+ 9.5KVA/120V

Output Waveform:- Sine Wave
Range Name (Solar):- PCU ( Power Control Unit )
Rated AC power:-  230V, 33A, Single phase
Max Supported Panel Power:- 7500 Wp, Input Voltage Range (Vmp) - 150-240V
Charge Controller:-   MPPT, Input Voltage 180-300 Voc
Nominal Battery Bank Voltage:- 120V
Warranty:- 24 months (2Year)


Do You Searching for an MPPT Solar PCU then the Luminous PCU NXT+ 9.5KVA/120V will be a great choice for you. Unlike other brands, Luminous is known for making high-end inverters, batteries, Solar system, Online UPS,  and Home UPS  that are durable and extremely practical.  The Luminous PCU NXT+ 9.5KVA/120V  is a premium quality pcu from Luminous. Glazeimpex is a well-known e-commerce platform for a qualitative range of Solar system, Online UPS, Home UPS, Inverter. The entire Luminous PCU NXT+ 9.5KVA/120V is manufactured using quality-assured material and advanced techniques, making them rise to the standard in this challenging field.

The NXT + PCU range is the ideal solution for off-grid applications. Designed for control, the PCU intelligently optimizes battery charging and power charging between solar, batteries, and the grid.

The Solar Power Conditioning Unit (PCU) is an integrated system consisting of a solar charge controller, an inverter, and a grid charger. This makes it easy to charge the battery bank via solar or grid / DG arrays. The PCU continuously monitors battery voltage, solar power output, and charge status

The PCU is a solar power conditioning unit (PCU) that also uses solar energy (primary) and power from the grid (secondary) to charge the battery. Since power usage from the grid is secondary, grid power is used only when solar power is not present and the battery voltage level is reduced to a certain level.

MPPT Charge Controller - Our solar PCU has the latest MPPT latest (maximum power point tracking) charge, controller. This enables you to make the most out of solar energy. It is 30% more efficient than a normal PWM based PCU.

Priority Setting - Being a bi-directional PCU, it allows customers the flexibility to set priority settings based on their requirements for maximum power savings, power backup only during power outages, and backup power via battery in areas where the network provider is not available.

Super Informative User-friendly LCD - A user-friendly LCD that displays important information like battery time of charge & discharge, Grid Off / available, Priority setting, etc.

Safe for your home - Luminous Solar PCU is armed with comprehensive protection features like short, reverse polarity, battery overcharge, and battery deep discharge. Its pure wave output ensures the security and quiet operation of connected appliances.

Here's Why Will You Like This?

  • Pure Sine Wave
  • Mains available: Yes
  • Battery Charging through Mains: Yes
  • Battery Charging through Solar Panel: Yes
  • Voltage regulation display: Yes
  • Power savings: Yes
  • Load output through Battery: Yes
  • Low Battery Indication: Yes
  • Overload Indication: Yes


Product Specification

Model NXT+ 9.5 kVA
Range Name (Solar) PCU
VA Rating 9.5 kVA
Output Waveform Sine Wave
Warranty 24 months
Net weight (kg.) 125 kg
No. of 12V Batteries in Series 10
Dimensions (L*B*H) 40.0*57.5*78.3 CM
Technology (Solar) With Battery
Maximum Power Voltage Vmp (V) 150V-240V
Max. supported panel power (Wp) 7500 Wp
Nominal battery bank voltage 120 V
Input Voltage Range (Voc) 180V-300V
